The DEIF TAS-331DG 100136589.20 Selectable AC Transducer is a reliable and efficient solution for measuring power or reactive power with precision. This transducer features a coupling of 2var3 and a wide operating range from -1000 to 7000kvar, making it suitable...
Couldn't load pickup availability

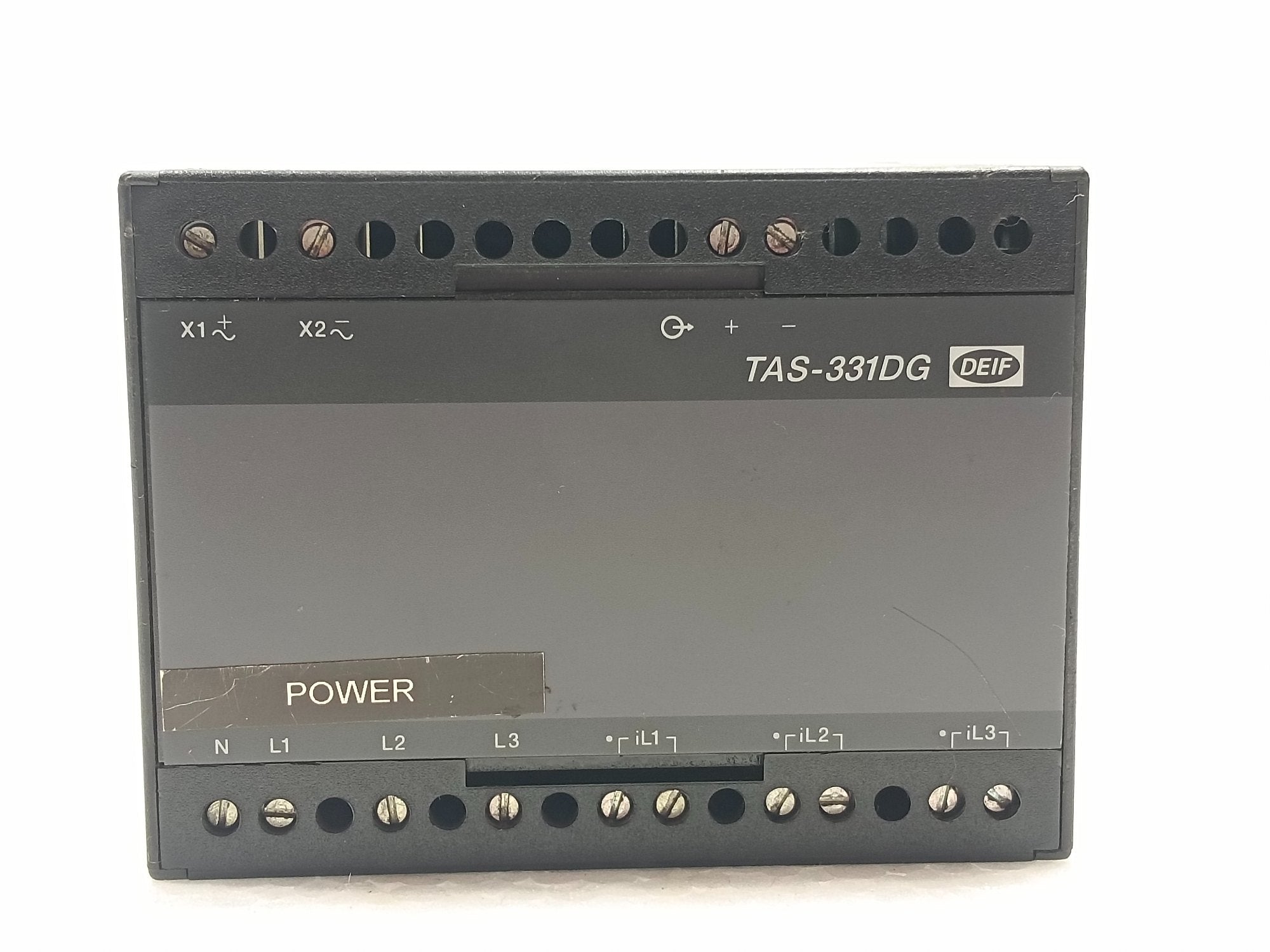

The DEIF TAS-331DG 100136589.20 Selectable AC Transducer is a reliable and efficient solution for measuring power or reactive power with precision. This transducer features a coupling of 2var3 and a wide operating range from -1000 to 7000kvar, making it suitable for various applications. With a ratio of 6.6kv/110v(l-l) for voltage and 700a/5a for current, this transducer delivers accurate and consistent results.
Equipped with an input range of -119 to 833 var and an output range of 4 to 12ma, the DEIF TAS-331DG ensures smooth and reliable performance. The output limits of -24ma to 24ma provide flexibility in monitoring power levels, while the load capacity of less than 500 ohms ensures compatibility with different systems. Additionally, the transducer operates on a supply voltage of 110vdc, offering stable power delivery.
The DEIF TAS-331DG 100136589.20 Selectable AC Transducer is designed for easy installation and operation, making it a valuable asset for power measurement applications. Its dual slope reactive power transfer curve and precise output values make it ideal for monitoring and controlling power systems. With a weight of 590 gm and a compact design, this transducer is a versatile and reliable solution for various power measurement needs.
