Danfoss EMP2 084G2158 Pressure Transmitter Guide
Danfoss EMP2 084G2158 Pressure Transmitter Guide

Danfoss EMP2 084G2158 Pressure Transmitter Guide

8 customers are viewing this product
Brand : Danfoss
SKU: RAMA1092
Availability: In Stock
Product Type: simple

The Danfoss EMP 2 Pressure Transmitter 084G2158 is a high-precision gauge transmitter engineered for reliable performance in both industrial and marine...

Need More Details?
If you’d like to check stock availability, request the latest price, or view more product images, simply click the "Request for Price" button and our team will assist you promptly.

Request a Quote
Description

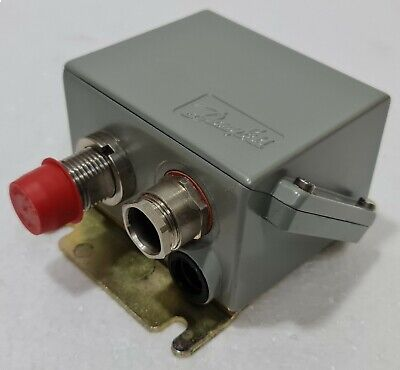

The Danfoss EMP 2 Pressure Transmitter 084G2158 is a high-precision gauge transmitter engineered for reliable performance in both industrial and marine environments. With a measuring range of 0 to 5.88 bar (0–85 psi), 4–20 mA output signal, and rugged IP65 housing, this device delivers accurate pressure feedback for automation, pump systems, and process control where robustness and accuracy matter most.

Key Features:

  • Converts pressure (0–5.88 bar) to a standard 4–20 mA output for seamless integration with control systems

  • Operates on a wide 12–32 V DC supply voltage for flexible power compatibility

  • IP65-rated enclosure provides strong protection against dust and water in harsh environments

  • High accuracy (typical ±0.5 % FS; max ±1 % FS) with excellent linearity ensures dependable readings

  • Field-adjustable zero and span settings allow easy on-site calibration and fine tuning

Specifications:

  • Product Name & Part Number: Danfoss EMP 2 Pressure Transmitter 084G2158

  • Pressure Range: 0–5.88 bar (0–85.34 psi), gauge reference

  • Output Signal: 4–20 mA (two-wire current loop)

  • Supply Voltage: 12–32 V DC

  • Connection Types: Terminal block with PG 13.5 cable entry; pressure port G 3/8 male

  • Temperature Range: Medium: –10 °C to +70 °C; compensated: 0 °C to +70 °C

  • Response Time: ≤ 4 ms for fast, responsive operation

  • Weight: Approx. 0.98 kg net, 1.066 kg gross

  • Certifications: Approved for marine and industrial use by ABS, DNV, Lloyd's Register, RINA, GL, and CCS

The Danfoss EMP 2 Pressure Transmitter 084G2158 combines precision engineering with rugged construction to deliver trusted pressure data in the most demanding industrial environments. Backed by marine-class approvals and field-adjustable calibration, it's an ideal choice for enhancing your automation system’s reliability and control performance.
